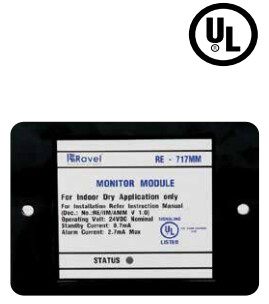

Addressable Monitor Module ,Ravel

Model : RE-717 MM

UL Listed, Abu Dhabi / Dubai Civil Defense Approved Addressable Monitor Module

OVERVIEW RE- 717 MM Monitor Module facilitates third party devices to interface with Ravel make addressable panel. Monitor Module is an input interface device for devices like security contacts, waterflow switches, pull stations etc. The RED blinking LED indicates normal operating conditions and the steady state LED for activated conditions. DIP switches are provided for addressing of the module. The Monitor circuit is supervised for faulty condition. FEATURES ► Indian Manufacturer - Indian Standard ► UL Listed (9th Edition) ► Modular Construction ► Module Status by RED LED ► Analogue Communication with the panel ► Module Addressing by 8 way DIP switches ► Low Standby Current ► Available with suitable back boxes ELECTRICAL / MECHANICAL SPECIFICATION Operating Voltage : 24VDC Nominal Current Draw : 2mA Max (Latched) Standby current : 0.5 mA Contact Rating : 2A @ 30VDC (Resistive) Temperature Range : 0°C to 49°C / 32° - 120°F Humidity : 93 ± 2% RH (non condensing) Dimension : (95W x 75H x 24D)mm Color : Black Weight : 0.35 Kg
